round and square steel pipe hot bending machine

Model No.︰YWG-2

Brand Name︰Fengliyuan

Country of Origin︰China

Unit Price︰US $ 30000 / set

Minimum Order︰1 set

Inquire Now

Product Description

The Main Technical Parameters of The Pipe Bending Machine

1、 Master cylinder： OD:299mm, inside diameter: φ250mm diameter of the rod: φ210mm

effective stroke: 11 m the max thrust of the 2 cylinders 210T

The other small cylinders: φ125mm -2 pieces （for clamping）

2、 Hydraulic pump station

a、station configuration: 25scy plunger pump 1 set 、 7.5KW Motor 1 set ( to converse frequency

adjust the speed of the master pump)

CB-100 gear pump 1 set 、15KW Motor 1 set ( fast forward and backward，).

40scy plunger pump 1 set,11kw motor 1 set (to guide clamp wheel、fixture motor)

The working speed ; 0-20cm/min , the maximum returning speed:280cm/min

3、The guiding part of the main machine is controlled by four wheels, the pushing board moving on the dovetail groove guiding rails. the clamp holding different size run By the hydraulic motor, it open and closed driven by the oil cylinder, the oil cylinder drive the rocking arm to adjust the bending radius.

4、Medium—frequency power supply (SCR)：

power:600kw. Quenching transformer: 3000kva.

5、the total power of the machinery: 35KW，380V or 220V,50or60HZ.

6、Assembly parts

a、clamp wheel、fixture made of 45# cast steel

b、master fuselage、weldment、the main pushing board are welded board

c、screw、chain、standard parts and bearing are national standards

d、the guider is dovetail groove slide plate mode

E-Mail: flygjsb@126.com

Skype：shonepole

Mobile:0086-15369798055

TEL:+86-317-6193236/6193226

Yanshancounty Fengliyuan Pipe Fittings Equipment Manufacture Co.,Ltd （CN）

Skype ：shonepole

http://www.flygjsb.com/English/ http://www.made-in-china.com/showroom/flygjsb

http://www.tradesparq.com/users/87292/Empon-Shing#profile-product-list

video link: http://i.youku.com/u/UNjEzNTc5OTE2

Payment Terms︰ TT LC

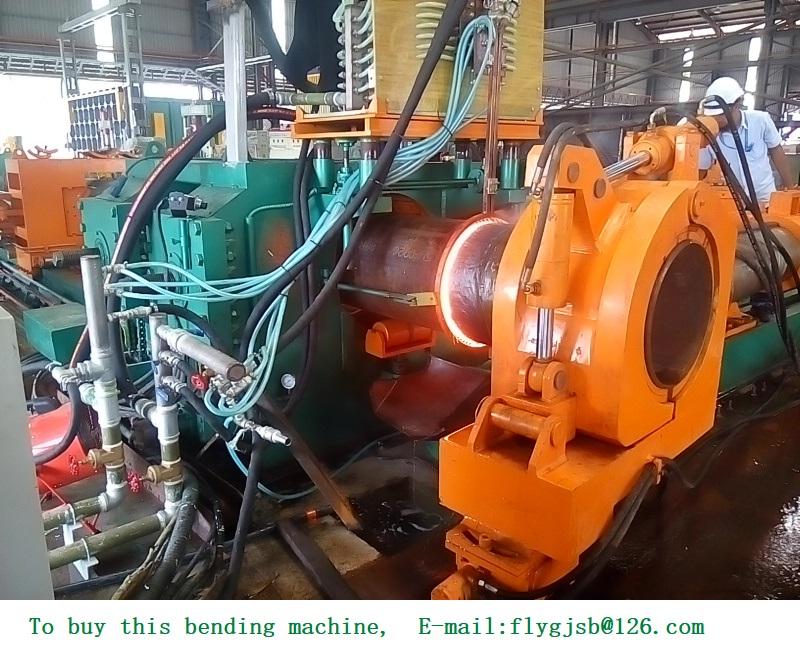

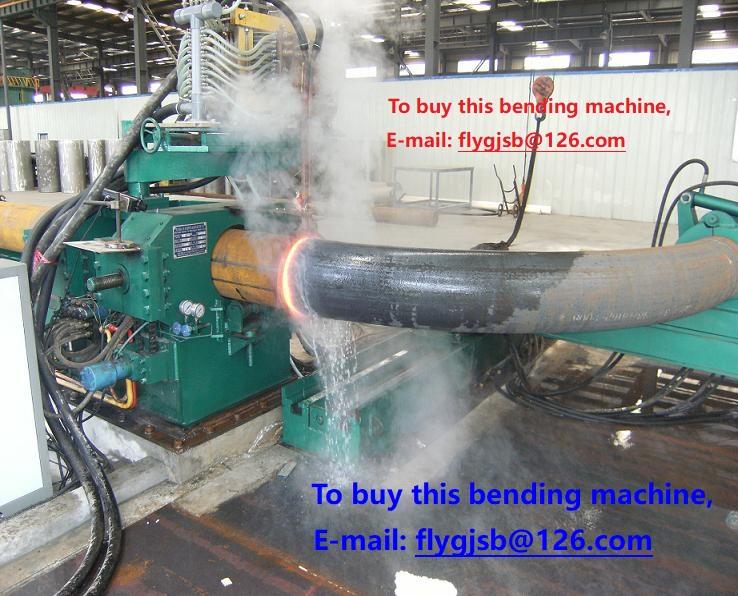

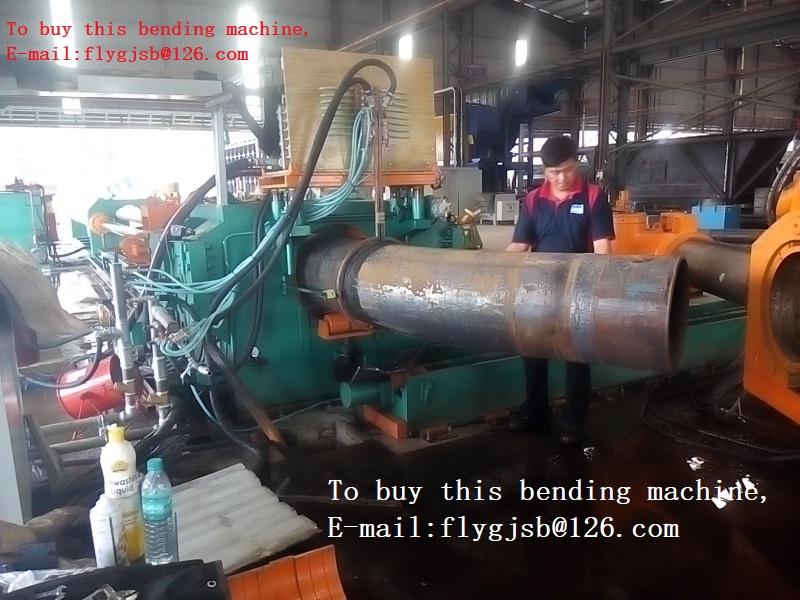

Product Image

YWG—****×20mm Hydraulic Pushing Pipe Bending Machine 1. Master cylinder： inside diameter: 320mm outside diameter: 377mm effective strock:12m the max thrust of the 2 cylinders:340T 2. Hydraulic pump station a、station configuration: 25scy plunger pump 1 set 7.5KW Motor 1 set ( to converse frequency adjust the speed of the master pump) CB-100 gear pump 1 set 15KW Motor 1 set ( fast forwad and backward) 25scy plunger pump 1 set 7.5KW Motor 1 set (used to guide clamp wheel、fixture motor). b、hydraulic motor 4 set c、hydraulic contral valve 1 sets ( REXROTH type) d、oil tank 1 e、control console、power distribution box 1 sets 3、Medium—frequency power supply： a、medium-frequency electric cabinet 1 set 1000KW b、water cooled cable 2 pics x 3m c、queeching transformer 1 set 4000KVA d 1420 water cooled heating coil 1 piece 4、Assembly parts a、clamp wheel、fixture made of 45# cast steel b、master fuselage、weldment、the main pushing board are welded board c、screw、chain、standard parts and bearing are national standards d、the guider is dovetail groove slide plate mode (To know more about our product ,please send e-mail to us. We will design the unique pipe bending machine for you as soon as I get to know the material and the size of the bend you would make with the machine)
