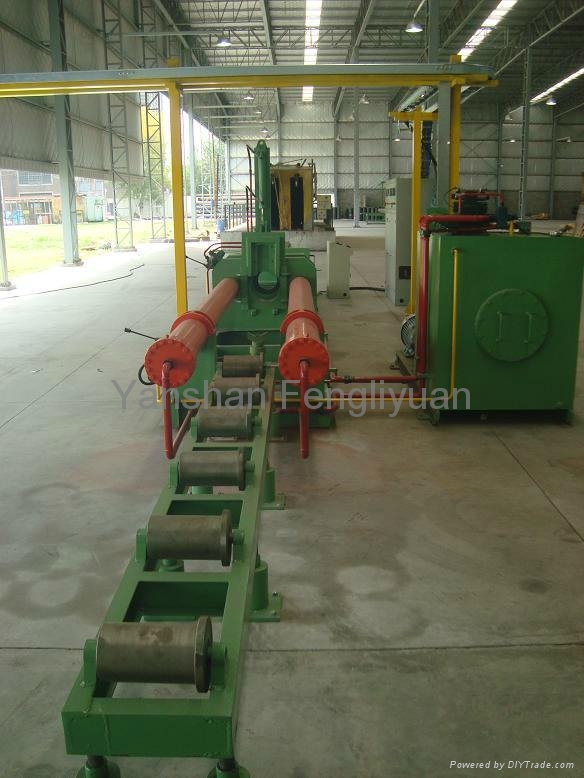

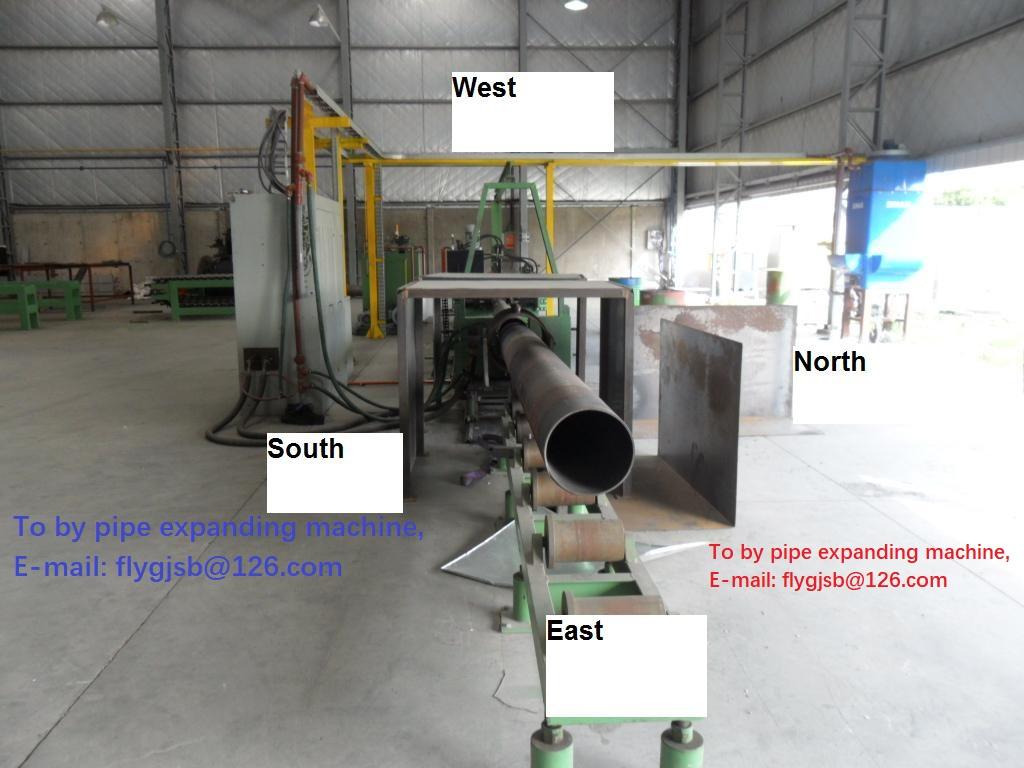

The Main Technical Parameters of The Pipe Expanding Machine
1. The oil cylinder: Ф 300mm,the rod：Ф 230mm ，the effective trip: 6.5m, pressure：21Mpa,2 bars
The maximum thrust of the 2 cylinders: 300 tons; The normal speed: 0—100cm/min ,
The max backward speed: 300cm/min.
2. The pump station：
63scy-plunger pump :2 set, 18.5KW Motor: 2 sets (the main working pump)
PV2R13-16-94 double vanes pump: 1 set, 15KW motor: 1set (for fast moving forward and returning,etc)
3. The hydraulic valve is integrated oil rout, hydraulic black fork gate, automatic loading.
4. The frame for the main engine: 25# channel steel, welded with 43kg steel rail
5. The panel for the main engine: welded with 25-30mm medium plate
6. distribution cabinets, operation box 1 set
7. Intermediate-frequency power (power 600KW 380v、220v、50Hz)
