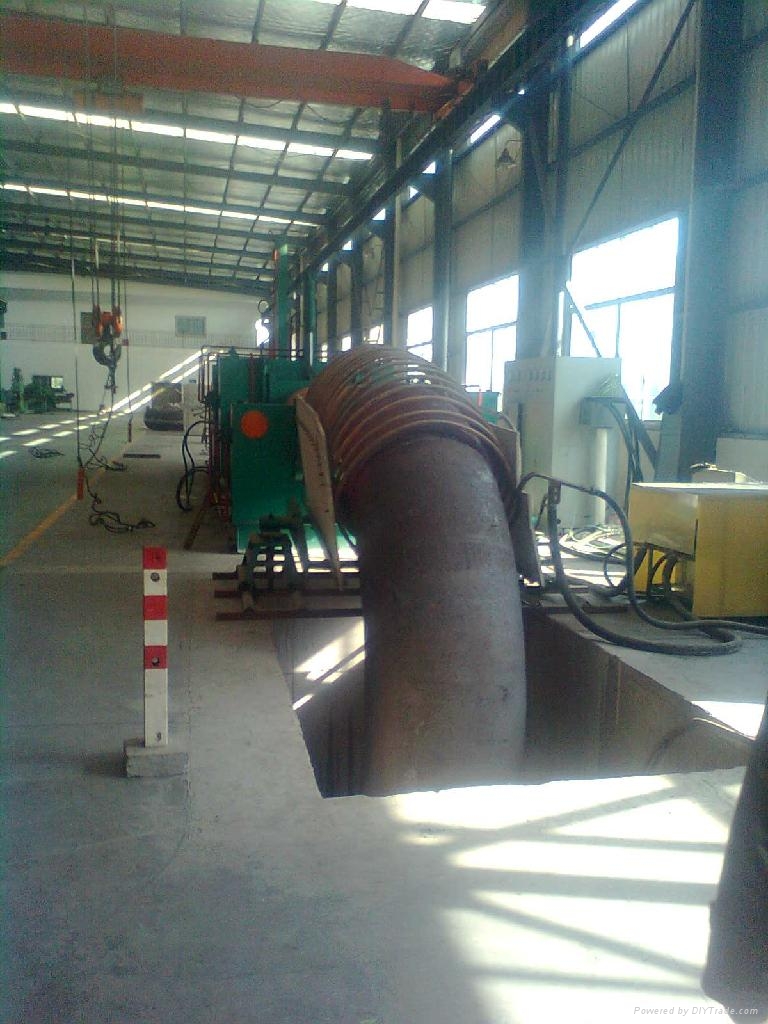

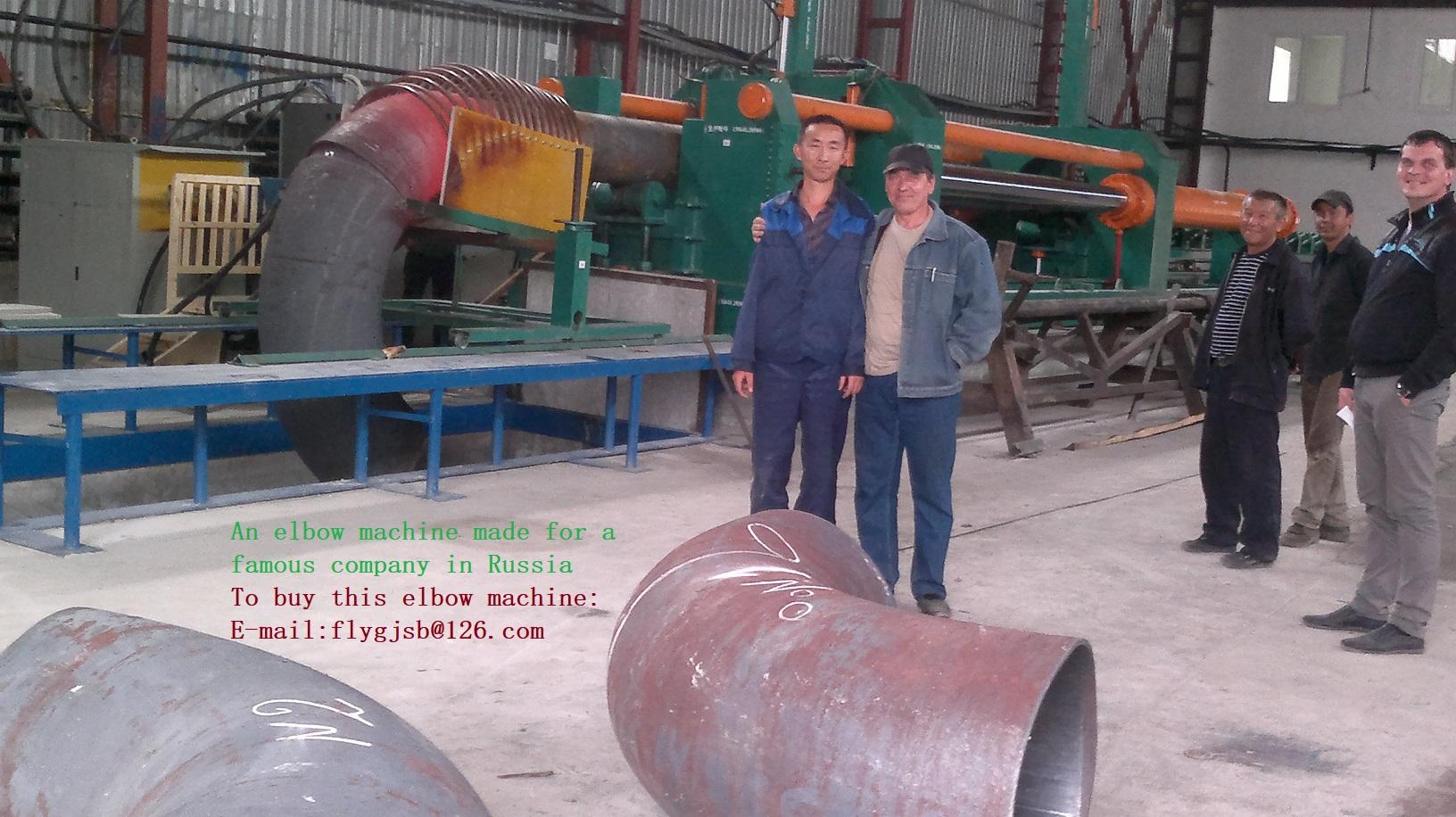

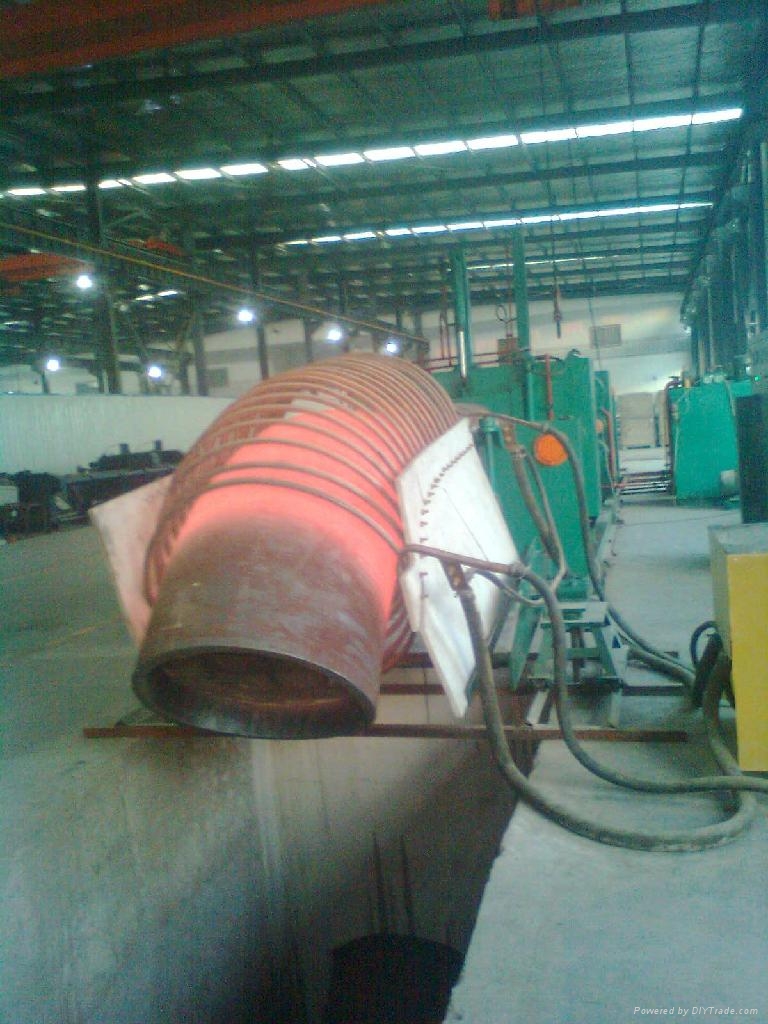

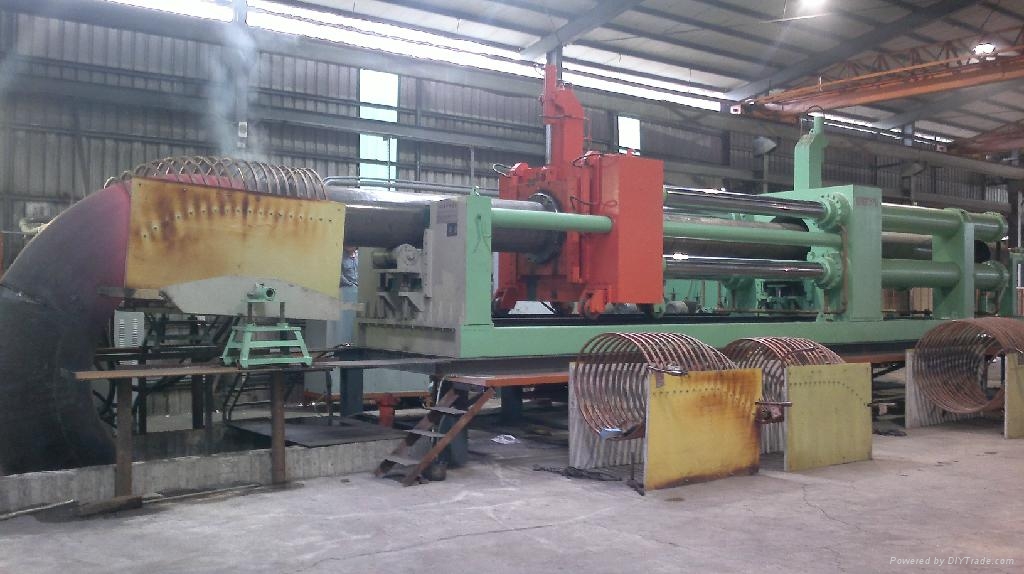

buttwelded steel elbow heat-making machine

  • buttwelded steel elbow heat-making machine
  • buttwelded steel elbow heat-making machine
  • buttwelded steel elbow heat-making machine
  • buttwelded steel elbow heat-making machine
  • buttwelded steel elbow heat-making machine
Model No.︰YWT-3
Brand Name︰Fengliyuan
Country of Origin︰China
Unit Price︰US $ 28000 / set
Minimum Order︰1 set
Share on:

 Total 20 Related Items
Prev1617181920Next

Product Description



The Main Technical Parameters of The Machine

1  The oil cylinder:ID 360mm, the rod:Ф260mm the effective trip: 6.5m,  pressure21Mpa,2 bars

The maximum thrust of the 2 cylinders:420 tons;   The working speed: 0—80cm/min ,

The max backward speed: 380cm/min.

2  The pump station

63scy-plunger pump :2 set, 18.5KW  Motor:  2sets (the main working pump)

   PV2R13-23-116 double vane pump 1 set,15kw motor 1 set.

The hydraulic valve is integrated oil rout, hydraulic back fork gate. Automatic feeding.   an adjustable shelf (height and width)for the heating coils

3.  The frame for the machine body: 30# channel steel, welded  with 43kg steel   rail

4  The panel for the main engine: welded with 40-50mm medium steel sheet.

5  Distribution cabinets, operation box 1 set

6  Intermediate-frequency power (power 600KW  380v220v50/60Hz)

E-Mail: flygjsb@126.com

Skypeshonepole

Mobile:0086-15369798055

TEL:+86-317-6193236/6193226

Yanshancounty Fengliyuan Pipe Fittings Equipment Manufacture Co.,Ltd  CN

Skype shonepole

http://www.flygjsb.com/English/   http://www.made-in-china.com/showroom/flygjsb

http://www.tradesparq.com/users/87292/Empon-Shing#profile-product-list

video link:  http://i.youku.com/u/UNjEzNTc5OTE2

Payment Terms︰TT LC
Product Image







YWT--- xxx mm hydraulic elbow pushing machine (main technical parameters ) 1 Oil cylinder: 360mm, the trip:5m, pressure: 21Mpa, 4pieces The maximum thrust of the 4 cylinders:850 tons the normal speed: 0-85cm/min ,the fastest back speed:300cm/min. 2 Pump station:80Scy-plunger pump :3 sets , 22kw-motor 3 sets(the main working pump) PV2R12-19-53 leaf pump: 1set, 15 Kw-motor 1 set (for rising the fork door) PV2R4-184 gear pump 1set, 18.5 Kw- motor 1 set (for fast moving forward and backward) We choose the two cartridge valves as hydraulic valve, that has the big flow rate with very little leakage; The leaf pump make less noise but higher pressure ; the hydraulic fork door,automatic feeding, all electric controled; the feeding shef and the coil shelf are manual adjust via screw for rising and falling. 3 The frame for the main engine: 30*1500 rectangle steel, welded with 43kg steel rail. The guiding robe: 219 steel pipe. 4 panel for the main engine: welded with 70mm\60mm medium plate, the pushing plate hole 850mm (To know more about our product ,please send e-mail to us. We will design the unique elbow machine for you as soon as I get to know the material and the size of the elbow you would make with the elbow machine)
