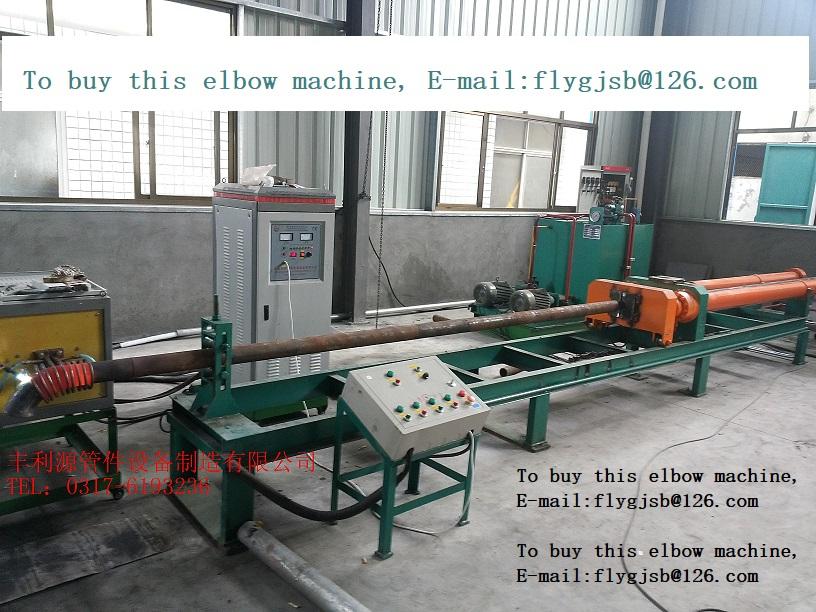

hydraulic machine for carbon steel elbow hot making machine

Model No.︰	YWT-5
Brand Name︰	Fengliyuan
Country of Origin︰	China
Unit Price︰	US $ 26000 / set
Minimum Order︰	1 set

Total 20 Related Items

Product Description

Our company is professional in designing and manufacturing medium frequency heating hydraulic welded pipe bending machine,thick wall elbow forming machine,pipe expanding machine,press,multi functional beveling machine,tee cold forming machine,etc.To know more about our company and our products,welcome to visite our web site: http://www.flygjsb.com (in english) .
As soon as we get the basic data of the pipe fittings (the diameter,the wall thickness,the material,etc.)you would like to made with the machine ,our profesional engineers will design the perfect machine unique for you,and then I will send the best quotation to you. Look forward to cooperate with you sincerely.

The Main Technical Parameters of The Machine

1 The oil cylinder:ID 360mm, the rod:Ф260mm ，the effective trip: 6.5m, pressure：21Mpa,2 bars

The maximum thrust of the 2 cylinders:420 tons; The working speed: 0—80cm/min ,

The max backward speed: 380cm/min.

2 The pump station：

63scy-plunger pump :2 set, 18.5KW Motor: 2sets (the main working pump)

PV2R13-23-116 double vane pump 1 set,15kw motor 1 set.

The hydraulic valve is integrated oil rout, hydraulic back fork gate. Automatic feeding. an adjustable shelf (height and width)for the heating coils

3. The frame for the machine body: 30# channel steel, welded with 43kg steel rail

4 The panel for the main engine: welded with 40-50mm medium steel sheet.

5 Distribution cabinets, operation box 1 set

6 Intermediate-frequency power (power 600KW 380v、220v、50/60Hz)
